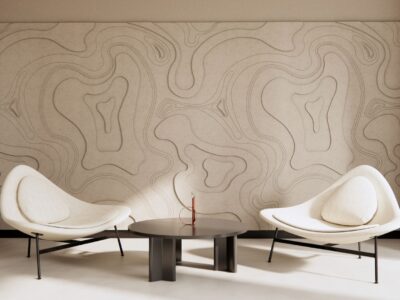

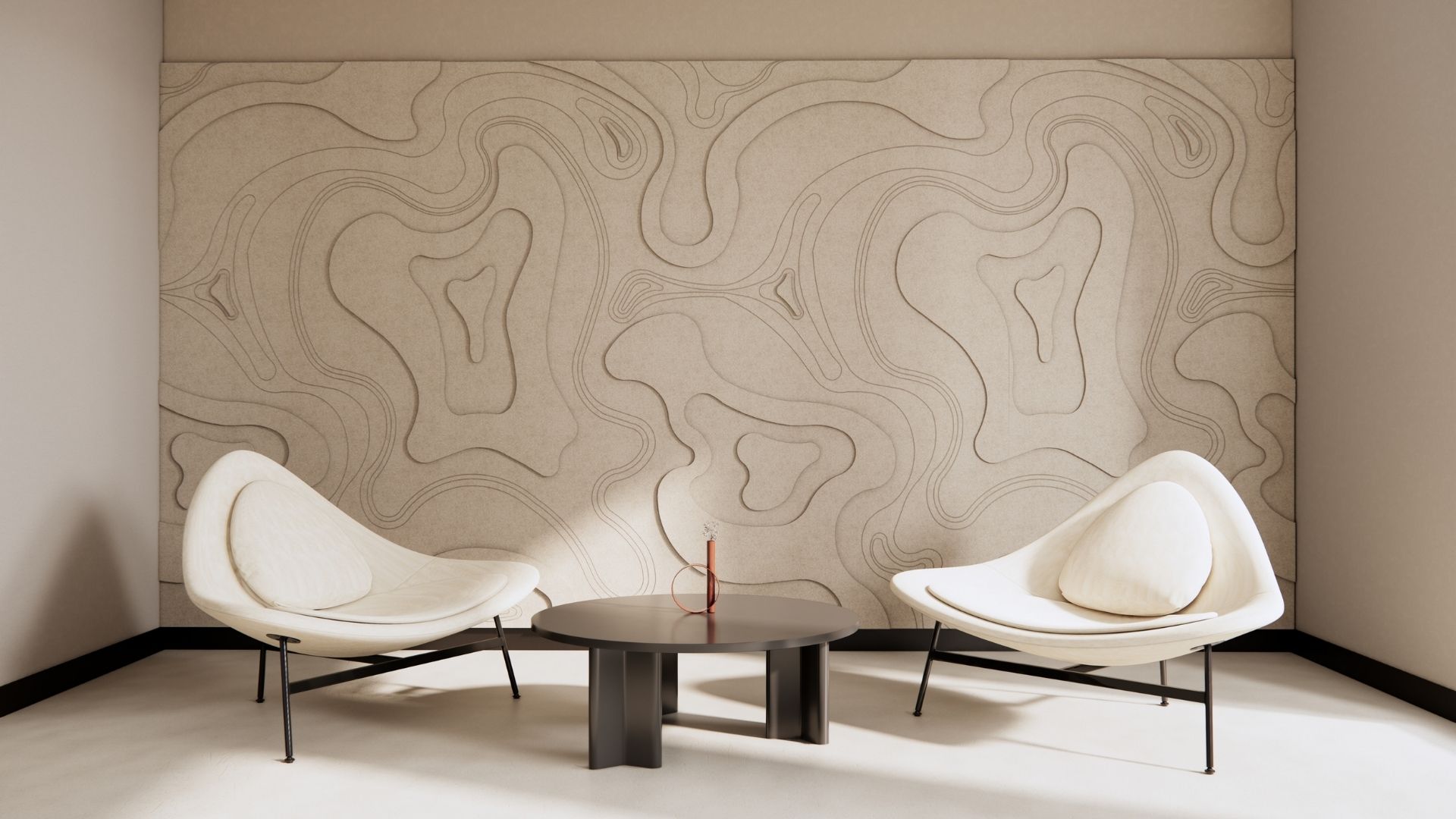

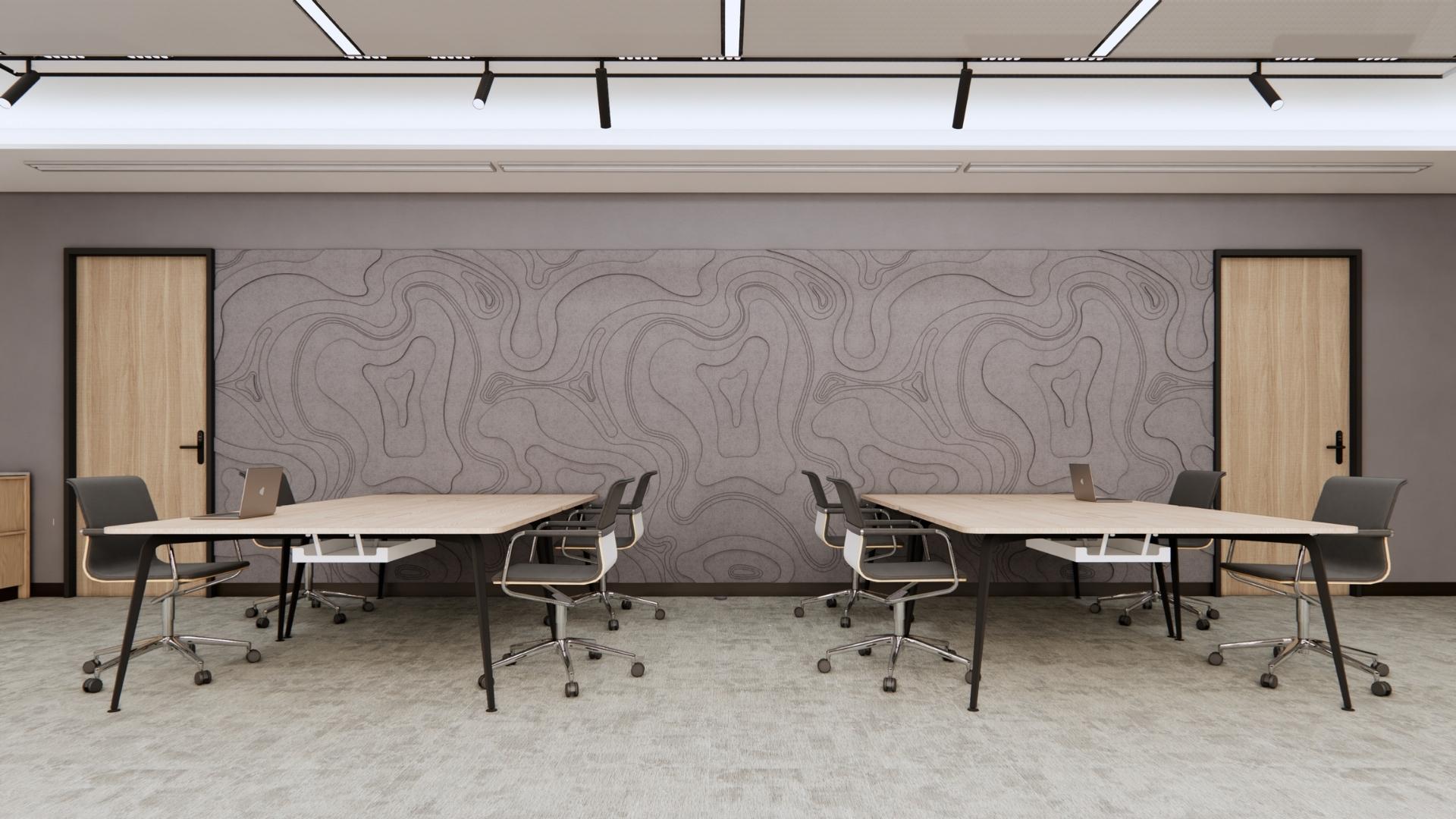

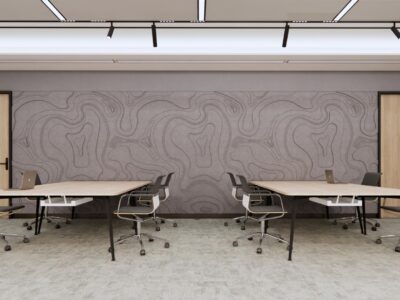

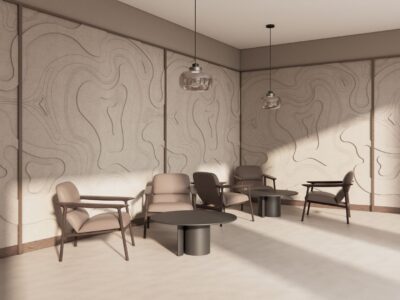

Öra Layered

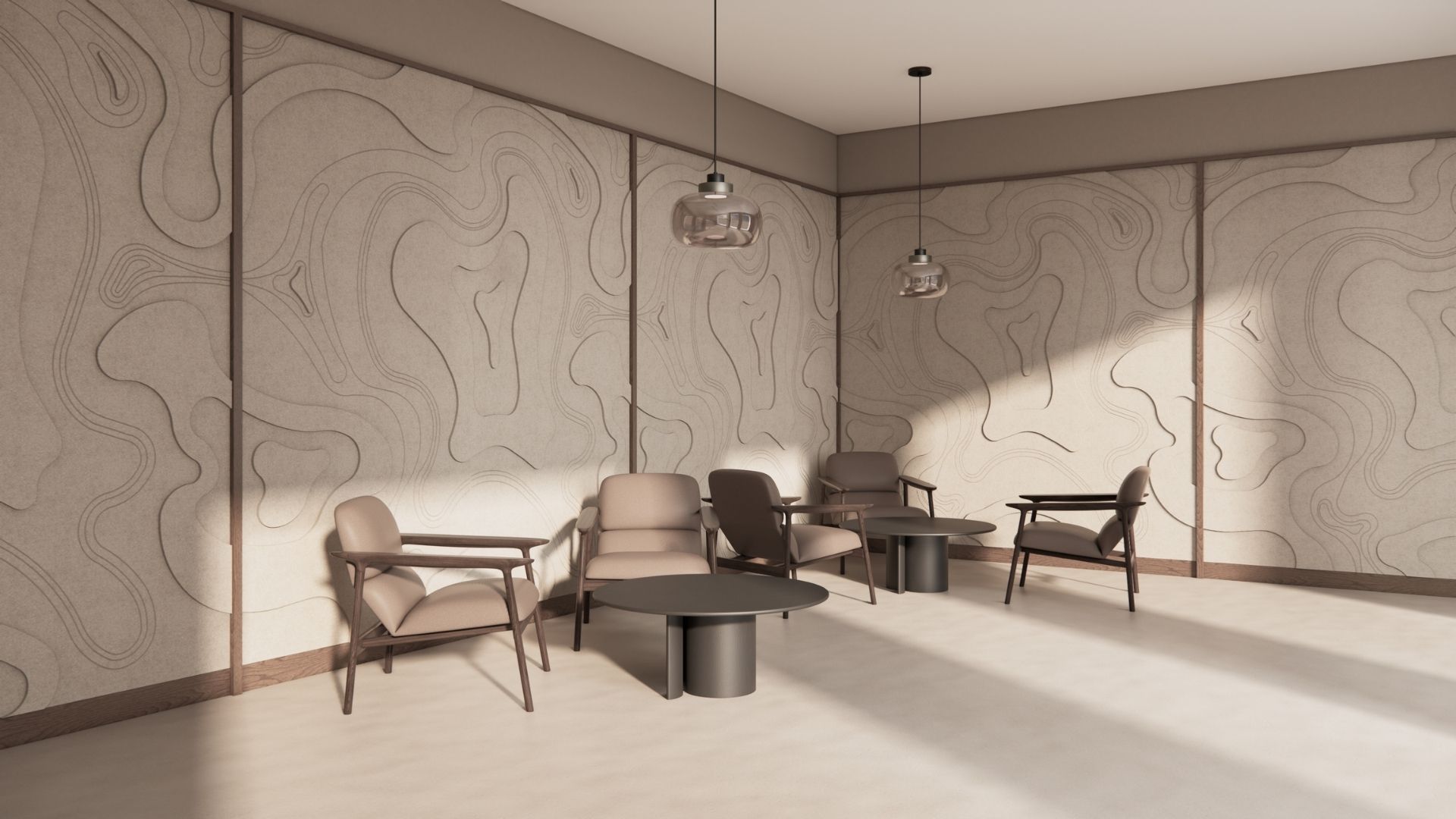

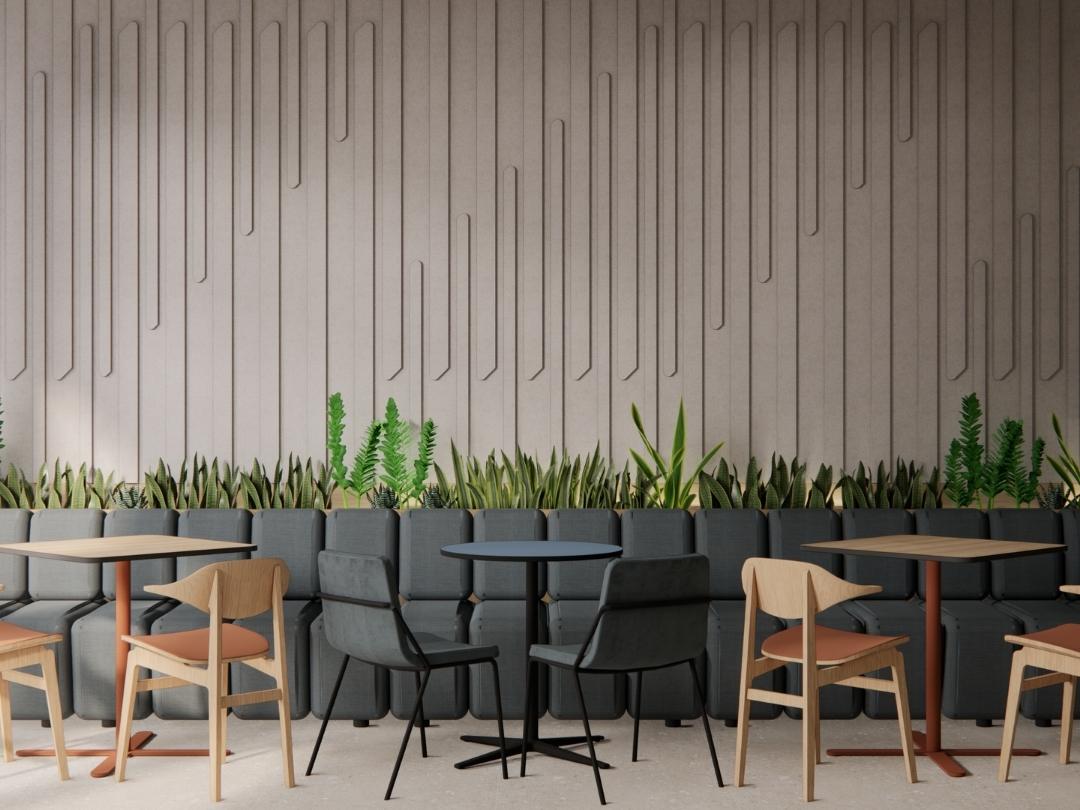

Acoustic wall surfaces
Origin, Aligned and Rooted are inspired by wall panelling, a design element that has a rich history in interior design, evolving over the centuries to reflect changing architectural styles, materials, and cultural preferences. In this collection we reinvented the wall panelling concept using it not only for decorative purposes but also for enhancing the acoustic performance and aesthetics in a space.
Downloads
BIM
CAD
Spec Sheet
Install Guide
Features
- Exclusive range of colours and designs created in collaboration with MF Design Studio.
- Wide range of dynamic patterns to bring joy to commercial spaces
- Ideal for making a design statement whilst managing acoustics
- Dual colour available for added visual impact
- Bespoke sizes available
- Made from 60% recycled PET felt
- No formaldehyde binders
- Low VOCs
- Easy to install
- Great option to wow your clients
- EN 13501-1:2018-B, s1, d0; ASTM E84 -16 - Class A
Technical Info
Dimensions (mm)
- Öra Layered designs - 12mm base: 1200 W x 2400 H x 24
- Öra Layered designs - 24mm base: 1200 W x 2400 H x 36
Acoustic Performance
- 12mm directly on surface: 0.40 NRC / Class E
- 12mm with 25mm void: 0.60 NRC / Class D
- 12mm with 50mm of acoustic wadding: 0.95 NRC / Class A
- 24mm directly on surface: 0.65 NRC / Class D
- 24mm with 100mm void: 0.90 NRC / Class A
- 24mm with 200mm of acoustic wadding: 1.0 NRC / Class A
Colours
Sample Request
Öra Layered Projects

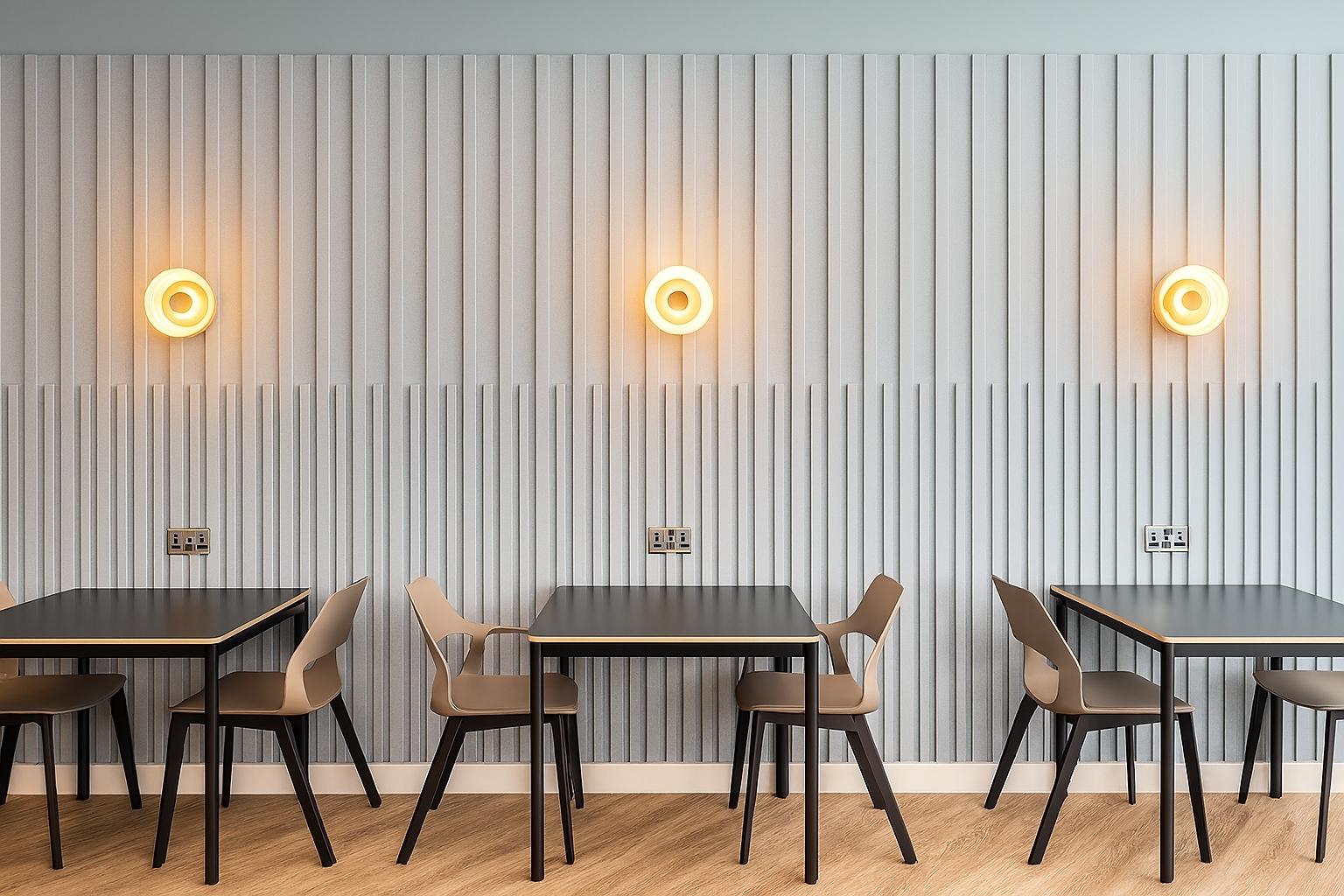

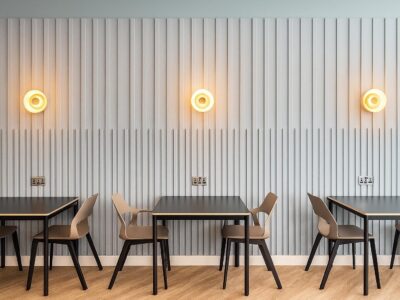

Cogent – MF Design Studio
The amazing space was designed by MF Design Studio and created by Spec Construction for Cogent.
