Öra Rhythmic

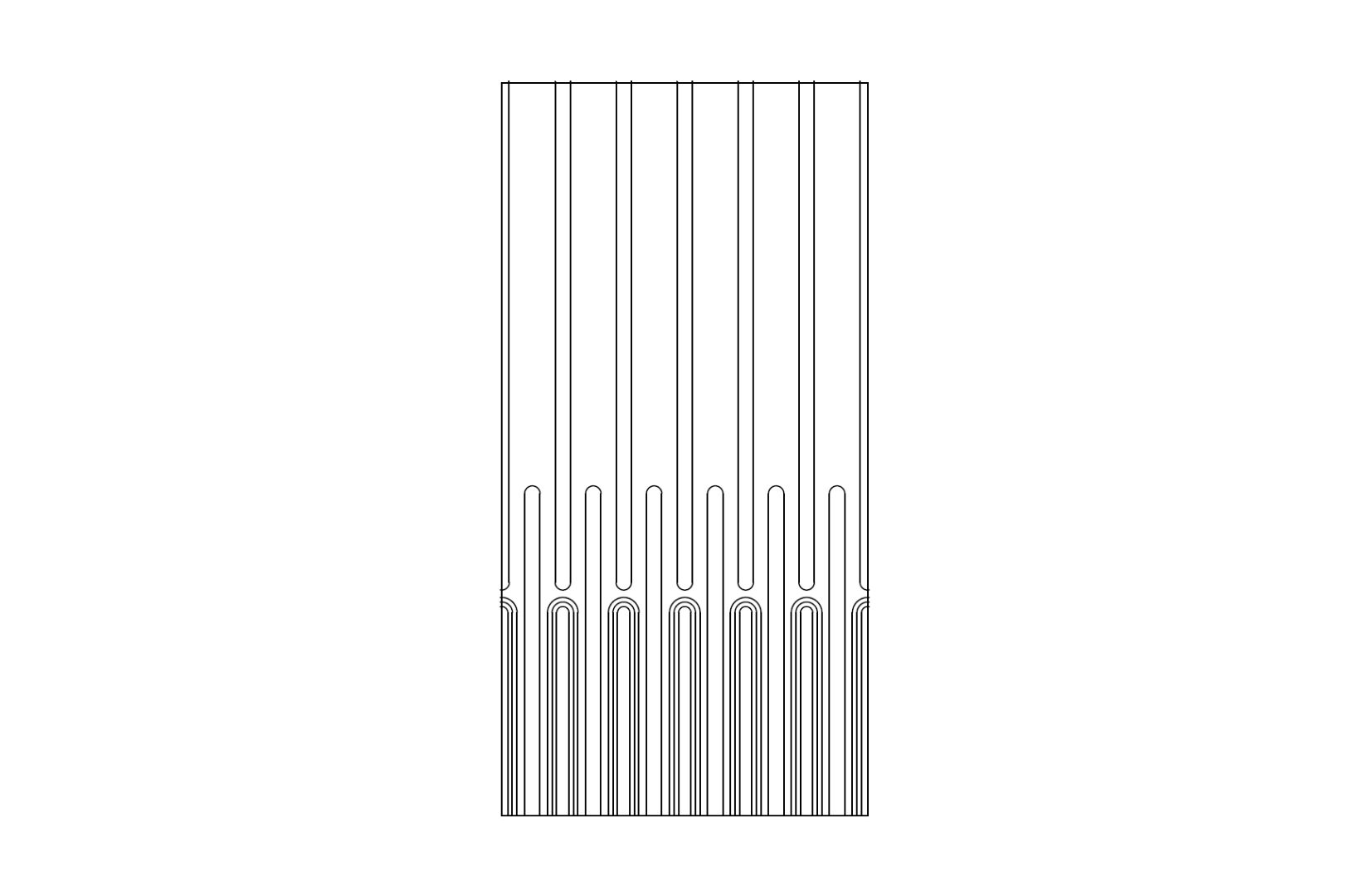

V cut acoustic wall surfaces
Energise Ping, Energise Pong are inspired by the dynamic movement of a pingpong ball. Creating motion and energy in any space. While Constructed is solid, mathematical, rhythmic and elegant.
Downloads
BIM
CAD
Spec Sheet
Install Guide
Features
- Exclusive range of colours and designs created in collaboration with MF Design Studio.
- Wide range of dynamic patterns to bring joy to commercial spaces
- Ideal for making a design statement whilst managing acoustics
- Available in 12mm and 24mm
- Dual colour available for added visual impact
- Bespoke sizes available
- Made from 60% recycled PET felt
- No formaldehyde binders
- Low VOCs
- Easy to install
- Great option to wow your clients
- EN 13501-1:2018-B, s1, d0; ASTM E84 -16 - Class A
Technical Info
Dimensions (mm)
- Öra V 12mm Rythmic designs: 1No 1200 W x 2400 H x 12 OR 2No 600 W x 2400 H x12
- Öra V 24mm Rythmic designs: 1No 1200 W x 2400 H x 24 OR 2No 600 W x 2400 H x24
- Öra V dual 12mm base Rythmic designs: 1No 1200 W x 2400 H x 12 OR 2No 600 W x 2400 H x12
- Öra V dual 24mm base Rythmic designs: 1No 1200 W x 2400 H x 24 OR 2No 600 W x 2400 H x24
Acoustic Performance
- 12mm directly on surface: 0.40 NRC / Class E
- 12mm with 25mm void: 0.60 NRC / Class D
- 12mm with 50mm of acoustic wadding: 0.95 NRC / Class A
- 24mm directly on surface: 0.65 NRC / Class D
- 24mm with 100mm void: 0.90 NRC / Class A
- 24mm with 200mm of acoustic wadding: 1.0 NRC / Class A
Colours
Sample Request
Öra Rhythmic Projects

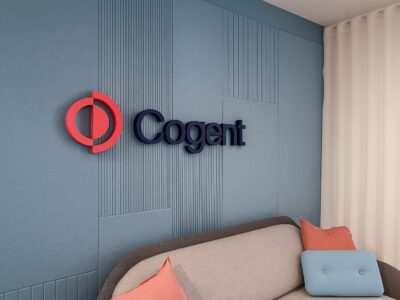

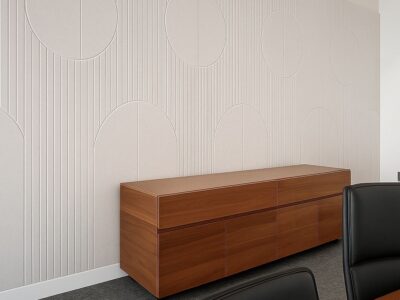

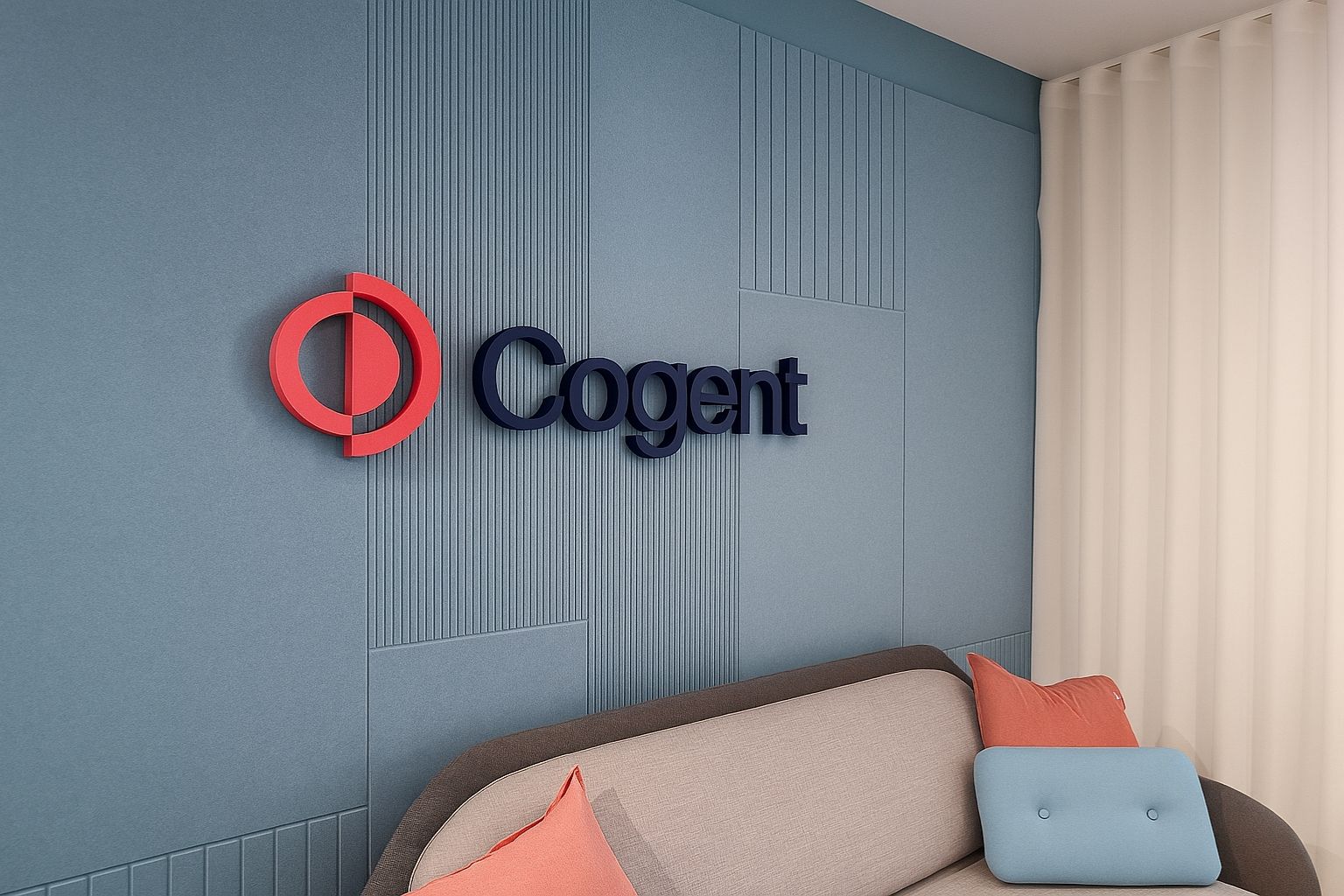

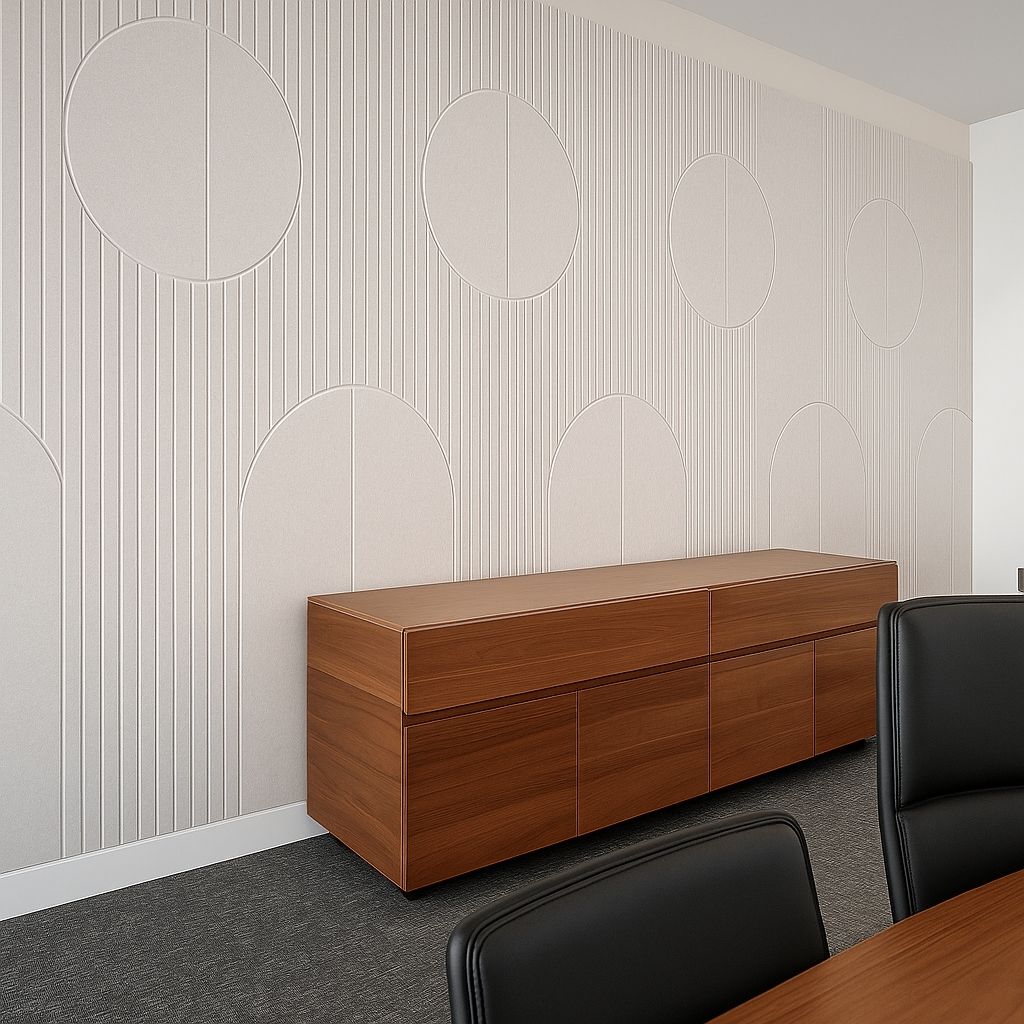

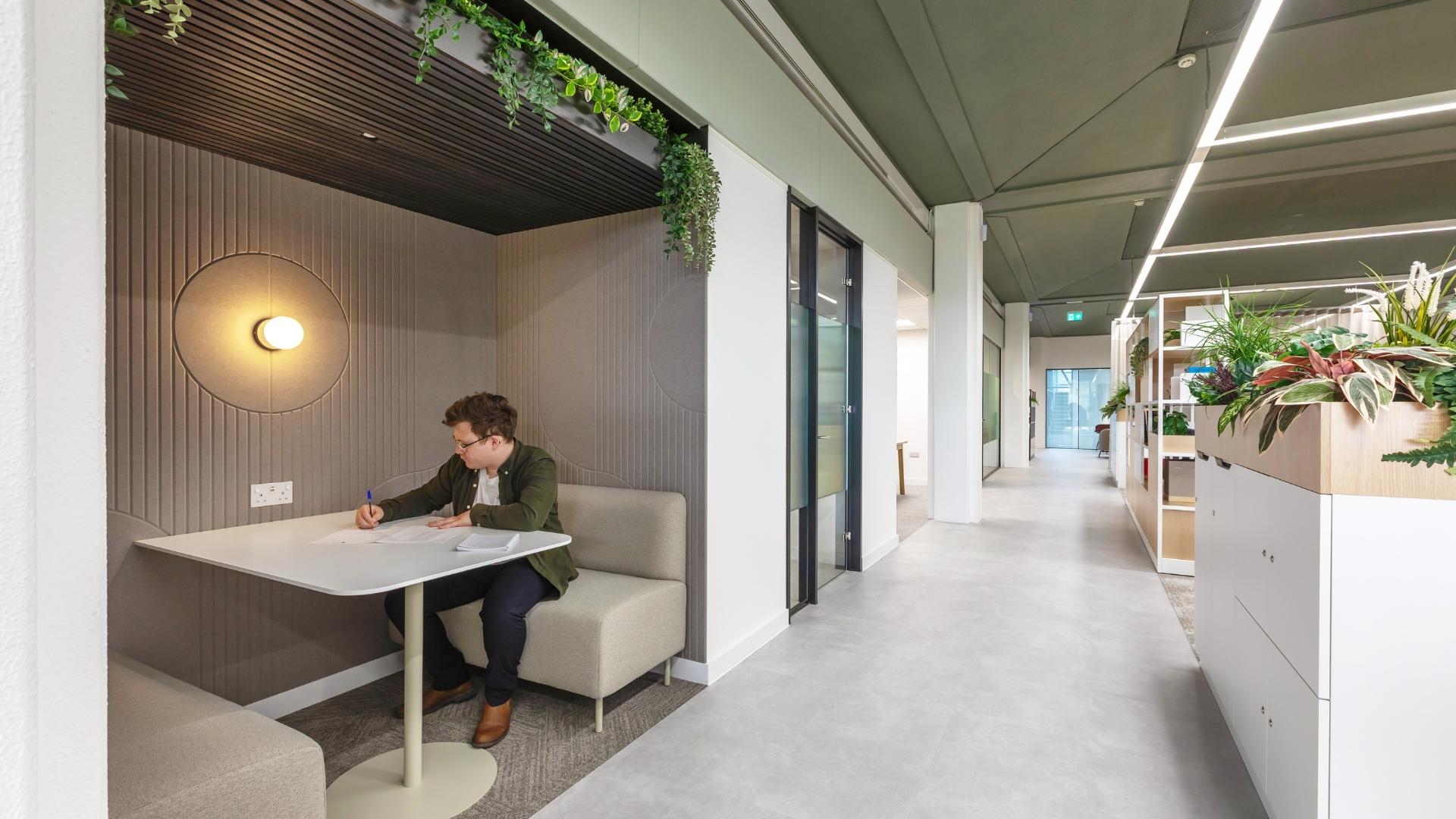

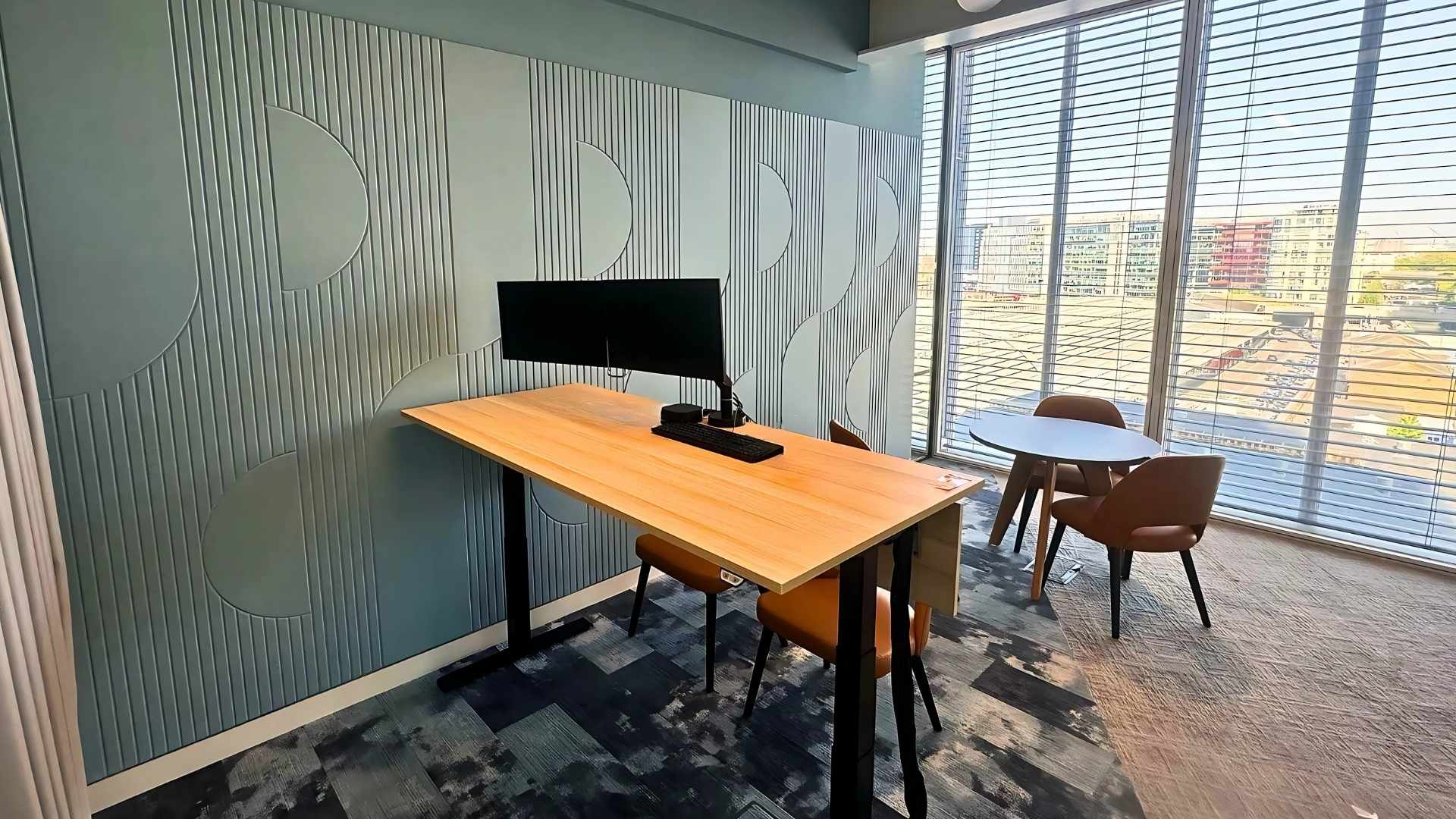

Cogent – MF Design Studio
The amazing space was designed by MF Design Studio and created by Spec Construction for Cogent.
