Acoustic
Furniture
Diffuse
Individual acoustic screens

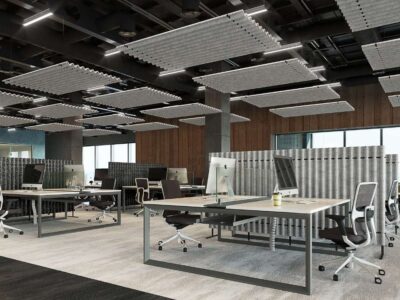

Diffuse acoustic screens combine design aesthetics with acoustic practicality to increase acoustic comfort and wellbeing in the workplace. The flexible, modular design includes a range of different sizes and shapes which allows you to define different spaces across large open-plan offices and co-working spaces.
Downloads
BIM
CAD
Spec Sheet
Features
- Designed and manufactured in the UK
- All screens are 8mm thick
- Made from 50% recycled PET
- Manufacturer’s 5 year guarantee
- All screens pass BS 5852: 2006 Clause 12, Ignition Source 5 (Crib 5)
- No formaldehyde binders
- Low VOCs
- Unique curved ridged design enhances acoustic properties
- Choice of eight different screen options including straight, curved and corner screens
- Modular and responsive configurations to suit any space
- Mobile options with castors available for starter screens
- Other frame colours available for large quantities
Technical Info
Straight starter screens
- Narrow low screen: 638 W x 1400 H
- Wide low screen: 1088 W x 1400 H
- Narrow high screen: 638 W x 1800 H
- Wide high screen: 1088 W x 1800 H
Straight add on screens dimensions (mm)
- Narrow low add on screen: 638 W x 1400 H
- Wide low add on screen: 1088 W x 1400 H
- Narrow high add on screen: 638 W x 1800 H
- Wide high add on screen: 1088 W x 1800 H
Curved starter screens dimensions (mm)
- Curved low screen: 1045 W x 1400 H
- Curved high screen: 1045 W x 1800 H
Curved add on screens dimensions (mm)
- Curved low add on screen: 1045 W x 1400 H
- Curved high add on screen: 1045 W x 1800 H
Corner starter screens dimensions (mm)
- Corner low screen: 790 W x 1400 H
- Corner high screen: 790 W x 1800 H
Corner add on screens dimensions (mm)
- Corner low add on screen: 790 W x 1400 H
- Corner high add on screen: 790 W x 1800 H
Feet dimensions (mm)
- 400 x 40
Acoustic Performance
- Panel directly on surface: 0.55 NRC / Class D
*Please note, this test was carried out with the Diffuse felt panels fixed directly to the wall and does not reflect the acoustic value when part of a free-standing screen.
Screen Types
Straight starter screens
Narrow low screen
Wide low screen
Narrow high screen
Wide high screen
Straight add on screens
Narrow low add on screen
Wide low add on screen
Narrow high add on screen
Wide high add on screen
Curved starter screens
Curved low screen
Curved high screen
Curved add on screens
Curved low add on screen
Curved high add on screen
Corner starter screens
Corner low screen
Corner high screen
Corner add on screens
Corner low add on screen
Corner high add on screen

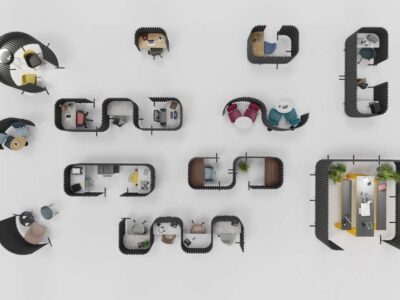

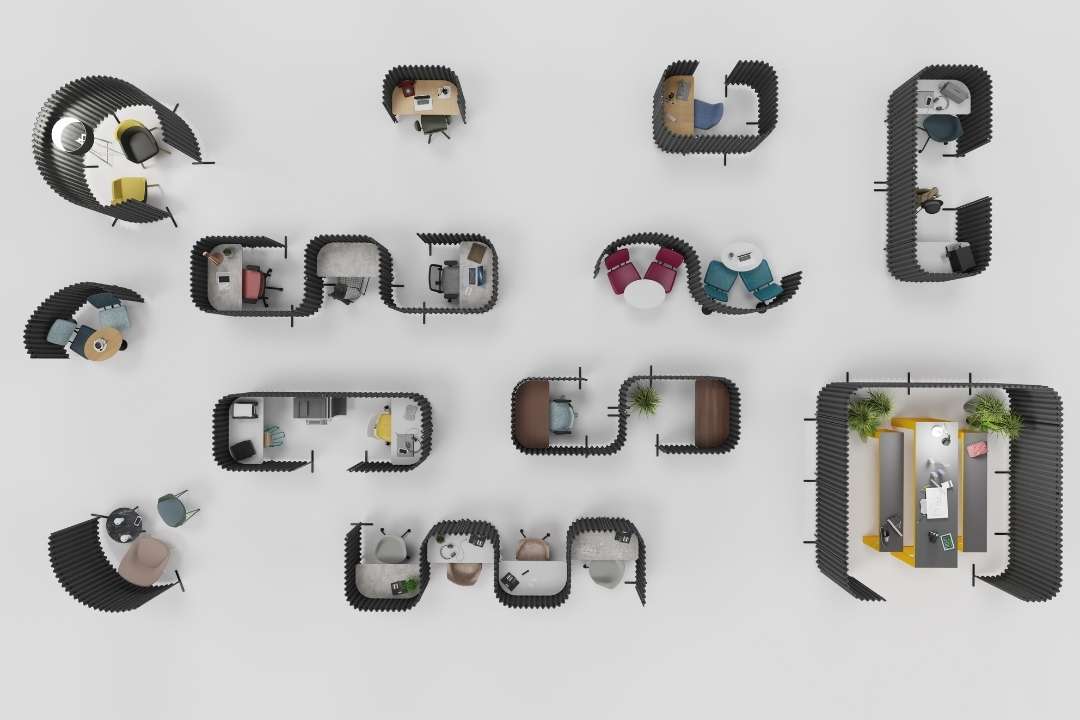

Other layouts with multiple desk runs available on request
Diffuse Mobile
Mobile option available for all straight, curved and corner starter screens.
Parts
Large foot (for long runs of straight screens)
Link Connector
